Complex Declarations

If debugging is the process of removing bugs, then programming must be the process of putting them in. -- Edsgar Dijkstra

Declaration Basics

Given this declaration:

char *(*foo(char *, int))[5];

What is the type of foo?

The arrangement of operators determines the type.
Like operators in expressions, precedence determines the ordering.
- function: ( ) and array: [ ] have the highest precedence and evaluate left-to-right
- indirection or dereference: * has lower precedence and evaluates right-to-left

Operator    Meaning     English phrase
------------------------------------------------------------------------
    *       Pointer      pointer to
   []       Array        array of N
   ()       Function     function taking X and returning Y

Examples:

int *p;       // pointer to an int
double p[5];  // array of 5 doubles
int p(float); // function taking a float and returning an int

Basic combinations:

Operators            Meaning                 with variable
--------------------------------------------------------
  *()        function returning a pointer      *foo()
 (*)()       pointer to a function             (*foo)()
  *[]        array of pointers                 *foo[]
 (*)[]       pointer to an array               (*foo)[]
  [][]       array of array                    foo[][]
  **         pointer to a pointer              **foo

Illegal declarations:

Operators            Meaning
----------------------------------------------------
  ()[]       function returning an array (ILLEGAL)
  ()()       function returning a function (ILLEGAL)
  []()       an array of functions (ILLEGAL)

Proper declarations

Operators            Meaning                               with variable
-----------------------------------------------------------------------
 (*())[]     function returning a pointer to an array       (*foo())[]
 (*())()     function returning a pointer to a function     (*foo())()
 (*[])()     an array of pointers to functions              (*foo[])()

Some use of these operators can be illegal (as shown above).
It is legal to use pointers to arrays and functions, however.
You must use additional parentheses between adjacent [] and () operators.

The Right-Left Rule

Start with an identifier.
Look to its immediate right for an operator.
If none is found, look to the left.
If found, substitute English keyword.
Continue right-left substitutions, moving outward from the identifier.

C Declarations to English

What is the English equivalent of each declaration? In other words, what is the type of f1, f2, etc?

int f1;
int *f2;
int f3[3];
int *f4[3];
int (*f5)[3];
int *(*f6)[3];
int f7[3][4];
int *f8[3][4];
int (*f9)[3][4];
int *(*f10)[3][4];
int (*f11[3])[4];
int *(*f12[3])[4];

int f21(void);
void f22(int, float);
void f23(int age, float weight);
int *f24(void);
int (*f25)(void);
int **f26(void);
int *(*f27)(void);
double *(*f28)(int, float *);
int **(**f29)(void);

int f31()[];
int *f31a[]();
int (*f31b[])();

int f32()();
int *f32a()();
int (*f32b())();

int f33[]();
int *f33a[]();
int (*f33b[])();

What are these declarations?

struct BITMAP *(*((*f41)[5]))(const char *, int);
unsigned int *(*f42(struct BITMAP **))[5];

Answers to the above C declarations.

English to C Declarations

An int
A pointer to an int
An array of 3 ints
An array of 3 pointers to ints
A pointer to an array of 3 ints
A pointer to an array of 3 pointers to ints
A pointer to an array of 3 arrays of 5 pointers to ints
A pointer to an array of 3 pointers to an array of 5 pointers to int
An array of 5 pointers to functions that take an int and return nothing.
A function that takes two ints and returns a pointer to a double
A function that takes no arguments and returns a pointer to an array of 10 ints
A function that takes an array of 3 doubles and returns a pointer to a function that takes no arguments and returns a float.
Bonus:
A function that takes a pointer to a pointer to an int and returns a pointer to an array of 5 pointers to functions that take an array of const chars and return an int.

Answers to the above English declarations.

Exercise: Declare a function that takes a single argument (which is a pointer to a function taking no arguments and returning void) and returns a similar function pointer (that is: it returns another pointer to a function taking no arguments and returning void). This is a common function in C++.

Function Pointers

Functions are treated slightly differently by the compiler:

Functions are basically blocks of code (instructions) in memory.
A function's name is the same as it's address.
To call a function, you simply use the function operator after the function's name: ()

You don't need to dereference (*) or take the address of (&) a function. The compiler always converts the function name to an address whenever it is used.

int f(void)
{
  return 255;
}

int main(void)
{
  printf("%p, %p, %p, %p\n", f, *f, &f, f());
  return 0;
}

Output:

00401028, 00401028, 00401028, 000000FF

Since functions are very similar to pointers, we can assign them to other pointers. Specifically, we can assign them to function pointers (variables which can point to functions.)

int f(void)
{
  return 255;
}

int main(void)
{
  int (*pf)(void);
  int i;

  pf = f;   // Ok
  pf = &f;  // Ok
  pf = *f;  // Ok
  pf = f(); // Error: 'int (*)(void)' differs in levels of indirection from 'int'
  i = f();  // Ok
  f = pf;   // Error: '=' : left operand must be l-value

  printf("%p, %p, %p, %p\n", f, *f, &f, f());
  printf("%p, %p, %p, %p\n", pf, *pf, &pf, pf());

  return 0;
}

Output:

0040102D, 0040102D, 0040102D, 000000FF
0040102D, 0040102D, 0012FF7C, 000000FF

Calling the function f can be accomplished in different ways:

int f(void)
{
  return 255;
}

int main(void)
{
  int value;
  int (*pf)(void) = f; // Initialize pf with address of f

    // All statements are equivalent
  value = f();      // call function "normally"
  value = pf();     // call function through pointer to function
  value = (*pf)();  // dereference pointer to function

  return 0;
}

Type compatiblity is important:

// a function that takes nothing and returns an int
int f(void)
{
  return 255;
}

// a function that takes nothing and returns an int
int g(void)
{
  return 0;
}

// a function that takes nothing and returns a double
double h(void)
{
  return 0.5;
}

int main(void)
{
  int value;
  int (*pf)(void);     // declare function pointer
  double (*ph)(void);  // declare function pointer

  pf = f;  // Ok, pf and f are same type
  pf = g;  // Ok, pf and g are same type
  pf = h;  // Error: incompatible types
  ph = h;  // Ok, ph and h are same type

  pf = (int (*)(void)) h;  // Only if you know what you're doing! (Unlikely in this case.)
  value = pf();            // Value is -858993460, not 0.

  return 0;
}

Using Function Pointers

Given these math functions:

  // From math.h
double sin(double);
double cos(double);
double tan(double);

and this declaration:

double (*pMathFns[])(double) = {sin, cos, tan};

it is easy to invoke the functions pointed to:

void TestFnArray1(void)
{
  int i;
  for (i = 0; i < 3; i++)
  {
    double x = pMathFns[i](2.0);
    printf("%f  ", x);
  }
  printf("\n");
}

Output:
0.909297  -0.416147  -2.185040

Or we can declare a compatible variable and use that instead:

void TestFnArray2(void)
{
  double (*(*pf)[3])(double) = &pMathFns; // Why &?
  int i;
  for (i = 0; i < 3; i++)
  {
    double x = (*pf)[i](2.0);
    printf("%f  ", x);
  }
  printf("\n");
}

Note the initialization of pf. If we leave off the &, we get warnings:

MS VC++ 6.0/7.1

main.c(218) : warning C4047: 'initializing' : 'double (__cdecl *(*)[3])(double )'
  differs in levels of indirection from 'double (__cdecl ** )(double )'

Borland C++ 5.6.4

Warning W8075 main.c 218: Suspicious pointer conversion in function TestFnArray2

GNU gcc:

main.c: In function `TestFnArray2':
main.c:218: warning: initialization from incompatible pointer type

Also, given the same declaration for pf, what exactly is wrong with #2 and #3?

double (*(*pf)[3])(double) = &pMathFns;

1. double x = (*pf)[i](2.0); // Ok (as above)
2. double x = *pf[i](2.0);   // ???
3. double x = (*pf[i])(2.0); // ???

Or using pointer notation:

void TestFnArray3(void)
{
  double (**ppf)(double) = pMathFns;
  int i;
  for (i = 0; i < 3; i++)
  {
    double x = (*ppf++)(2.0); // (**ppf++)(2.0) will also work
    printf("%f  ", x);
  }
  printf("\n");
}

Function Pointers as Callbacks

qsort is a function that can sort an array of any data. Even types that haven't been invented yet!

void qsort(void *base,
           size_t num,
           size_t width,
           int (*compare)(const void *elem1, const void *elem2)
          );

Parameters

base - Start of target array
num - Array size in elements
width - Element size in bytes
compare - Comparison function
- elem1 - Pointer to the key for the search
- elem2 - Pointer to the array element to be compared with the key

From MSDN documentation:

The qsort function implements a quick-sort algorithm to sort an array of num elements, each of width bytes. The argument base is a pointer to the base of the array to be sorted. qsort overwrites this array with the sorted elements. The argument compare is a pointer to a user-supplied routine that compares two array elements and returns a value specifying their relationship. qsort calls the compare routine one or more times during the sort, passing pointers to two array elements on each call:

compare((void *) elem1, (void *) elem2);

The routine must compare the elements, then return one of the following values:

Return Value          Description
-------------------------------------------
   < 0           elem1 less than elem2
     0           elem1 equivalent to elem2
   > 0           elem1 greater than elem2

The array is sorted in increasing order, as defined by the comparison function. To sort an array in decreasing order, reverse the sense of "greater than" and "less than" in the comparison function.

Example

This is the comparison function that will be used to determine the order:

int compare_int(const void *arg1, const void *arg2)
{
  int left = *(int *)arg1;  // Can't dereference a void *
  int right = *(int *)arg2; // Can't dereference a void *

  if (left < right)
    return -1;
  else if (left > right)
    return 1;
  else
    return 0;
}

This is usually written in a more compact way:

int compare_int1(const void *arg1, const void *arg2)
{
  return *(int *)arg1 - *(int *)arg2;
}

This will work nicely as the last parameter to the qsort function:

void qsort(void *base,
           size_t num,
           size_t width,
           int (*compare)(const void *elem1, const void *elem2)
          );

A program using the function:

void PrintInts(int array[], int size)
{
  int i;
  for (i = 0; i < size; i++)
    printf("%i ", array[i]);
  printf("\n");
}

void TestInts(void)
{
  int array[] = {5, 12, 8, 4, 23, 13, 15, 2, 13, 20};

  PrintInts(array, 10);               // print the array
  qsort(array, 10, 4, compare_int1);  // sort the array
  PrintInts(array, 10);               // print the sorted array
}

Output:
5 12 8 4 23 13 15 2 13 20
2 4 5 8 12 13 13 15 20 23

By creating another comparison function, we can sort in descending order:

int compare_int2(const void *arg1, const void *arg2)
{
  return *(int *)arg2 - *(int *)arg1;
}

How could we have written the above to take advantage of code reuse?

Now we can do:

void TestInts(void)
{
  int array[] = {5, 12, 8, 4, 23, 13, 15, 2, 13, 20};

  PrintInts(array, 10);               // print original array
  qsort(array, 10, 4, compare_int1);  // sort in ascending order
  PrintInts(array, 10);               // print sorted array (ascending)
  qsort(array, 10, 4, compare_int2);  // sort in descending order
  PrintInts(array, 10);               // print sorted array (descending)
}

Output:
5 12 8 4 23 13 15 2 13 20
2 4 5 8 12 13 13 15 20 23
23 20 15 13 13 12 8 5 4 2

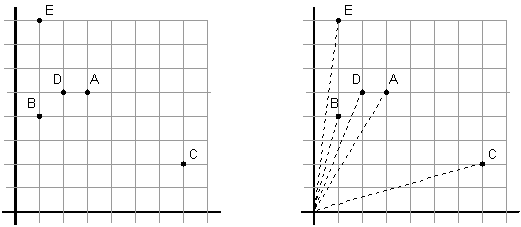

Given a POINT structure we can code comparison functions. What does it mean for one structure to be greater or less than another?

struct POINT
{
  int x;
  int y;
};

A comparison function for comparing the x member: (note the function name)

int compare_ptsx(const void *arg1, const void *arg2)
{
  return ((struct POINT *)arg1)->x - ((struct POINT *)arg2)->x;
}

A comparison function for comparing the y member: (note the function name)

int compare_ptsy(const void *arg1, const void *arg2)
{
  return ((struct POINT *)arg1)->y - ((struct POINT *)arg2)->y;
}

Now we can use them in a program:

void PrintPts(const struct POINT pts[], int size)
{
  int i;
  for (i = 0; i < size; i++)
    printf("(%i,%i) ", pts[i].x, pts[i].y);
  printf("\n");
}

void TestStructs1(void)
{
    // Array of 5 POINT structs
  struct POINT pts[] = { {3, 5}, {1, 4}, {7, 2}, {2, 5}, {1, 8} };

    // These values are calculated at compile time
  int count = sizeof(pts) / sizeof(pts[0]);
  int size = sizeof(pts[0]);

  PrintPts(pts, count);                   // print the points
  qsort(pts, count, size, compare_ptsx);  // sort the points (on x)
  PrintPts(pts, count);                   // print the sorted points
  qsort(pts, count, size, compare_ptsy);  // sort the points (on y)
  PrintPts(pts, count);                   // print the sorted points
}

Output:
(3,5) (1,4) (7,2) (2,5) (1,8)
(1,4) (1,8) (2,5) (3,5) (7,2)
(7,2) (1,4) (3,5) (2,5) (1,8)

We can do something more "exotic" with the POINTS like sorting by the distance from the origin. Here's one way of doing that:

int compare_ptsd(const void *arg1, const void *arg2)
{
  struct POINT *pt1 = (struct POINT *)arg1;  // first point
  struct POINT *pt2 = (struct POINT *)arg2;  // second point

    // calculate distances from origin
  double d1 = sqrt( (pt1->x * pt1->x) + (pt1->y * pt1->y) );
  double d2 = sqrt( (pt2->x * pt2->x) + (pt2->y * pt2->y) );
  double diff = d1 - d2;

    // return -1, 0, 1 depending on the difference
  if (diff > 0)
    return 1;
  else if (diff < 0)
    return -1;
  else
    return 0;
}

Then test it:

void TestStructs1(void)
{
    // Array of 5 POINT structs: [A,B,C,D,E]
  struct POINT pts[] = { {3, 5}, {1, 4}, {7, 2}, {2, 5}, {1, 8} };

    // These values are calculated at compile time
  int count = sizeof(pts) / sizeof(pts[0]);
  int size = sizeof(pts[0]);

  PrintPts(pts, count);                   // print the points
  qsort(pts, count, size, compare_ptsd);  // sort the points (by distance from 0,0)
  PrintPts(pts, count);                   // print the sorted points
}

Output:
(3,5) (1,4) (7,2) (2,5) (1,8)    [A,B,C,D,E]
(1,4) (2,5) (3,5) (7,2) (1,8)    [B,D,A,C,E]

Diagram:

Distances from origin: A(5.83), B(4.12), C(7.28), D(5.38), E(8.06)

Jump Tables

A jump table is simply a table (array) of function pointers. Instead of searching through the list of functions using an if-then-else paradigm, we just index into the table.

Assuming we have a function for each operation on a calculator:

double add(double operand1, double operand2)
{
  return operand1 + operand2;
}

double subtract(double operand1, double operand2)
{
  return operand1 - operand2;
}

double multiply(double operand1, double operand2)
{
  return operand1 * operand2;
}

double divide(double operand1, double operand2)
{
  return operand1 / operand2;
}

We can create a calculator program around these functions:

enum OPERATION {ADD, SUB, MUL, DIV};

void DoMath1(double operand1, double operand2, enum OPERATION op)
{
  double result;
  switch (op)
  {
  case ADD:
    result = add(operand1, operand2);
    break;

  case SUB:
    result = subtract(operand1, operand2);
    break;

  case MUL:
    result = multiply(operand1, operand2);
    break;

  case DIV:
    result = divide(operand1, operand2);
    break;

    // many other cases ....

  }

  printf("%f\n", result);
}

Calling the function:

int main(void)
{
  DoMath1(3, 5, ADD);
  DoMath1(3.14, 2, MUL);
  DoMath1(8.4, 8.4, SUB);

  return 0;
}

Output:
8.000000
6.280000
0.000000

We can be much more efficient by using a jump table instead:

  // create a "jump table" of calculator functions
double (*operation[])(double, double) = {add, subtract, multiply, divide};

void DoMath2(double operand1, double operand2, enum OPERATION op)
{
    // replace the entire switch statement with this one line:
  double result = operation[op](operand1, operand2);
  printf("%f\n", result);
}

The calling function, main, doesn't have to change. Extending the operations to include a power function:

// Implement the new functionality
double power(double operand1, double operand2)
{
  return pow(operand1, operand2);
}

// Update the table
enum OPERATION {ADD, SUB, MUL, DIV, POW};
double (*operation[])(double, double) = {add, subtract, multiply, divide, power};

Use it:

DoMath2(3, 5, ADD);
DoMath2(3.14, 2, MUL);
DoMath2(8.4, 8.4, SUB);
DoMath2(5, 3, POW);  // new function

Output:
