Class Inheritance

Object-Oriented Programming

Inheritance is one of the three pillars of Object Oriented Programming:

Encapsulation (data abstraction/hiding; the class)
Inheritance (Is-a relationship, extending a class)
Polymorphism (dynamic binding, virtual methods)

You've already seen encapsulation (classes). Now we will look at extending a class via inheritance.

Non OOP typically uses top-down design or structured design decomposing the problem into modules.
These programs are collections of interacting functions.
Before we used classes, we programmed top-down.
Top-down doesn't scale up well for large programs.
It is generally difficult to reuse code from one program to the next since the functions work directly on the data.
Object-oriented languages must provide 3 facilities:
- data abstraction
- inheritance
- polymorphism (dynamic binding)
Programs written in an OO language are collections of interacting objects.
In C++, classes provide data abstraction; a class is essentially an Abstract Data Type (ADT).
Client programs don't work directly on the data in an object, they "ask" the object to manipulate its own data via public member functions (methods).
OO refers to this "asking" as "sending a message" to the object.

Other OO languages use different terminology than C++. Here are some equivalents:

OOP C++

Object Class object or instance

Instance variable Private data member

Method Public member function

Message passing Calling a public member function

Within a class, all of the data and functions are related. Within a program, classes can be related in various ways.

Two classes are independent of each other and have nothing in common
Two classes are related by inheritance
Two classes are related by composition, also called aggregation or containment

Inheritance

Relation is an is-a relationship. (Also is-a-kind-of relationship)
A car is a vehicle, A dog is an animal. (A car is a kind of vehicle, A dog is a kind of animal.)
Generally, not reversible. All cars are vehicles but not all vehicles are cars.

Composition

Relation is a has-a relationship.
Also called aggregation or containment.
One class is composed of another (maybe several)
A car has a motor (and a steering wheel, and 4 tires, etc.)

An inheritance relationship can be represented by a hierarchy.

A partial vehicle hierarchy:

A partial animal hierarchy:

A Simple Example

Structures to represent 2D and 3D points:

struct Point2D { double x_; double y_; };

struct Point3D { double x_; double y_; double z_; };

Another way to define the 3D struct so that we can reuse the Point2D struct:

struct Point3D_composite
{
  Point2D xy_; // Struct contains a Point2D object
  double z_;
};

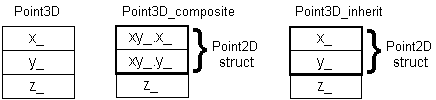

The memory layout of Point3D and Point3D_composite is identical and is obviously compatible with C, as there is nothing "C++" about them yet.

Accessing the members:

void PrintXY(const Point2D &pt)
{
  std::cout << pt.x_ << ", " << pt.y_;
}

void PrintXYZ(const Point3D &pt)
{
  std::cout << pt.x_ << ", " << pt.y_ << ", " << pt.z_;
}

void PrintXYZ(const Point3D_composite &pt)
{
  std::cout << pt.xy_.x_ << ", " << pt.xy_.y_;
  std::cout << ", " << pt.z_;
}

Of course, the last function can be modified to reuse PrintXY:

void PrintXYZ(const Point3D_composite &pt)
{
  PrintXY(pt.xy_); // delegate for X,Y
  std::cout << ", " << pt.z_;
}

A "cleaner" way to do define the 3D point is to use inheritance.

// Struct inherits a Point2D object
struct Point3D_inherit : public Point2D
{
  double z_;
};

This new struct has the exact same physical structure as the previous two 3D point structs and is still compatible with C:

struct Point3D { double x_; double y_; double z_; };

struct Point3D_composite { Point2D xy_; // Struct contains a Point2D object double z_; };

Sample usage:

int main(void)
{
  Point3D pt3;
  Point3D_composite ptc;
  Point3D_inherit pti;

  char buffer[100];
  sprintf(buffer, "pt3: x=%p, y=%p, z=%p\n", &pt3.x_, &pt3.y_, &pt3.z_);
  std::cout << buffer;

  sprintf(buffer, "ptc: x=%p, y=%p, z=%p\n", &ptc.xy_.x_, &ptc.xy_.y_, &ptc.z_);
  std::cout << buffer;

  sprintf(buffer, "pti: x=%p, y=%p, z=%p\n", &pti.x_, &pti.y_, &pti.z_);
  std::cout << buffer;

    // Assign to Point3D members
  pt3.x_ = 1;
  pt3.y_ = 2;
  pt3.z_ = 3;
  PrintXYZ(pt3);
  std::cout << std::endl;

    // Assign to Point3D_composite members
  ptc.xy_.x_ = 4;
  ptc.xy_.y_ = 5;
  ptc.z_ = 6;
  PrintXYZ(ptc);
  std::cout << std::endl;

    // Assign to Point3D_inherit members
  pti.x_ = 7;
  pti.y_ = 8;
  pti.z_ = 9;
  PrintXYZ(pti);
  std::cout << std::endl;

  return 0;
}

Output:

pt3: x=0012FF68, y=0012FF70, z=0012FF78
ptc: x=0012FF50, y=0012FF58, z=0012FF60
pti: x=0012FF38, y=0012FF40, z=0012FF48
1, 2, 3
4, 5, 6
7, 8, 9

Notes about this syntax:

struct Point3D_inherit : public Point2D

Point2D is the base class for Point3D_inherit.
Point3D_inherit is the derived class.
The public keyword specifies that the public methods of the base class remain public in the derived class. This is known as public inheritance and it is the most common.
There is also protected and private inheritance, but it is used much less.

Adding methods to the structs:

struct Point2D { double x_; double y_; void print(void) { std::cout << x_ << ", " << y_; } };

struct Point3D { double x_; double y_; double z_; void print(void) { std::cout << x_ << ", " << y_ << ", " << z_; } };

Composite and inheritance (everything is public):

struct Point3D_composite { Point2D xy_; double z_; void print(void) { // 2D members are public std::cout << xy_.x_ << ", " << xy_.y_; std::cout << ", " << z_; } };

struct Point3D_inherit : public Point2D { double z_; void print(void) { // 2D members are public std::cout << x_ << ", " << y_; std::cout << ", " << z_; } };

And in main we would have something that looks like this:

Point3D pt3;
Point3D_composite ptc;
Point3D_inherit pti;

// setup points

pt3.print();
ptc.print();
pti.print();  // Is this legal? Ambiguous? Which method is called?

Let's make it more C++-like with private members and public methods:

// Class is a stand-alone 2D point
class Point2D
{
  public:
    Point2D(double x, double y) : x_(x), y_(y) {};
    void print(void)
    {
      std::cout << x_ << ", " << y_;
    }
  private:
    double x_;
    double y_;
};

// Class is a stand-alone 3D point
class Point3D
{
  public:
    Point3D(double x, double y, double z) : x_(x), y_(y), z_(z) {};
    void print(void)
    {
      std::cout << x_ << ", " << y_ << ", " << z_;
    }
  private:
    double x_;
    double y_;
    double z_;
};

With composition, we must initialize the contained Point2D object in the initializer list:

// Class contains a Point2D object
struct Point3D_composite
{
  public:
    Point3D_composite(double x, double y, double z) : xy_(x, y), z_(z) {};
    void print(void)
    {
      xy_.print(); // 2D members are private
      std::cout << ", " << z_;
    }
  private:
    Point2D xy_;
    double z_;
};

With inheritance, we must initialize the Point2D subobject in the initializer list:

// Class inherits a Point2D object
struct Point3D_inherit : public Point2D
{
  public:
    Point3D_inherit(double x, double y, double z) : Point2D(x ,y), z_(z) {};
    void print(void)
    {
      Point2D::print(); // 2D members are private
      std::cout << ", " << z_;
    }
  private:
    double z_;
};

Sample usage:

int main(void)
{
    // Create Point3D
  Point3D pt3(1, 2, 3);
  pt3.print();
  std::cout << std::endl;

    // Create Point3D_composite
  Point3D_composite ptc(4, 5, 6);
  ptc.print();
  std::cout << std::endl;

    // Create Point3D_inherit
  Point3D_inherit pti(7, 8, 9);
  pti.print();
  std::cout << std::endl;

  return 0;
}

A Larger Example

The Base Class

class Time
{
  public:
    Time(int h, int m, int s);
    Time();
    void Set(int h, int m, int s);
    void Write(void) const;
    void Increment(void);

  private:
    int hrs_;
    int mins_;
    int secs_;
};

A diagram of the Time class:

Note that sizeof(Time) is 12 bytes.

Partial implementation from Time.cpp: (Notice the code reuse even in this simple example.)

Time::Time()
{
  Set(0, 0, 0);
}

Time::Time(int h, int m, int s)
{
  Set(h, m, s);
}

void Time::Set(int h, int m, int s)
{
  hrs_ = h;
  mins_ = m;
  secs_ = s;
}

Class Design Tip: When a class has more than one constructor, move the common initialization code into a separate private method whenever possible.

Extending the Time class

Now we decide that we'd like the Time class to include a Time Zone:

enum TimeZone {EST, CST, MST, PST, EDT, CDT, MDT, PDT};

We have several choices at this point:

Modify the Time class to include a TimeZone.
Create a new class by copying and pasting the code for the existing Time class and adding the TimeZone.
Create a new class by inheriting from the Time class.

What are the pros and cons of each method above?

Deriving ExtTime from Time:

class ExtTime : public Time
{
  public:
    ExtTime();
    ExtTime(int h, int m, int s, TimeZone z);
    void Set(int h, int m, int s, TimeZone z);
    void Write(void) const;

  private:
    TimeZone zone_;
};

What is sizeof(ExtTime)? How might it be laid out in memory?

Some implementations of the ExtTime constructors:

The derived class default constructor: (the base class default constructor is implicitly called)
ExtTime::ExtTime()
{
  zone_ = EST; // arbitrary default
}
The derived class non-default constructor: (the base class default constructor is implicitly called)
ExtTime::ExtTime(int h, int m, int s, TimeZone z)
{
  zone_ = z;
  // what do we do with h, m, and s?
}
Calling a non-default base class constructor explicitly:
ExtTime::ExtTime(int h, int m, int s, TimeZone z) : Time(h, m, s)
{
  zone_ = z;
}
Same as above using initializer list for derived member initialization:
ExtTime::ExtTime(int h, int m, int s, TimeZone z) : Time(h, m, s), zone_(z)
{
}
Notes:
The derived constructor calls the default base constructor if you don't call it explicitly.
You can call any base constructor explicitly.
A base constructor must be called from a derived constructor using the initializer list syntax. This is incorrect:
ExtTime::ExtTime(int h, int m, int s, TimeZone z)
{
  Time(h, m, s); // Can't call a base constructor explicitly here
  zone_ = z;
}
Key Point: A base constructor must be called, either implicitly or explicitly. If the base class has no default constructor, you must call another one explicitly. (If you don't, the compiler will generate an error.)

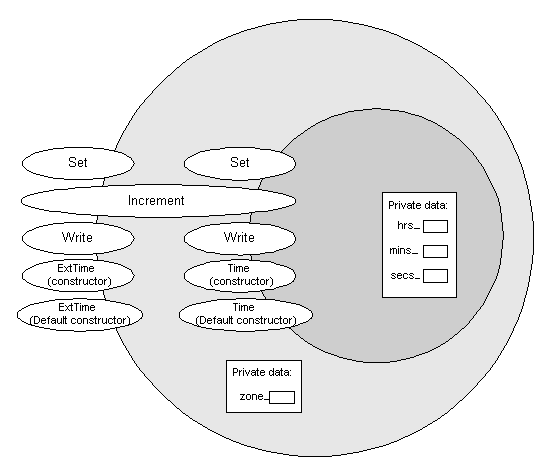

The relationship between the Time and ExtTime classes:

In the ExtTime class:

We override the Set and Write methods of the base class.
We inherit the Increment method of the base class.
It's easy to see the relationship of the base class with its derived class in the diagram above.
Because an ExtTime object is a Time object, an ExtTime object is valid anywhere in a program that a Time object is valid. (Note that the converse is not true.)
The diagram also makes it clear how sizeof works in this case.
Note that derived classes do not inherit these methods:
- Constructors (including copy constructors)
- Destructors
Assignment operators are also not inherited.

Given our classes:

class Time { public: Time(int h, int m, int s); Time(); void Set(int h, int m, int s); void Write(void) const; void Increment(void); private: int hrs_; int mins_; int secs_; };

class ExtTime : public Time { public: ExtTime(); ExtTime(int h, int m, int s, TimeZone z); void Set(int h, int m, int s, TimeZone z); void Write(void) const; private: TimeZone zone_; };

What is the result of this code:

ExtTime time();
time.Set(9, 30, 0);
time.Write();

Another Example of Inheritance

The specification (Employee.h) for an Employee class:

#ifndef EMPLOYEE_H
#define EMPLOYEE_H
const int MAX_LENGTH = 50;

class Employee
{
  private:
    char firstName_[MAX_LENGTH];
    char lastName_[MAX_LENGTH];
    float salary_;
    int years_;

  public:
    Employee(const char* first, const char* last, float salary, int years);

    void setName(const char* first, const char* last);
    void setSalary(float newSalary);
    void setYears(int numYears);
    void Display(void) const;
};
#endif

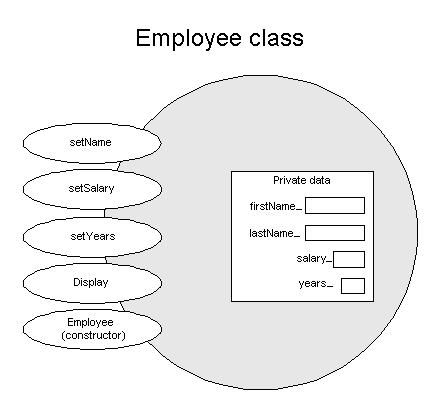

A diagram of the Employee class:

What is sizeof(Employee)?

An implementation (Employee.cpp) for the Employee class:

#include "Employee.h"
#include <string>
#include <iomanip>
#include <iostream>
using namespace std;

Employee::Employee(const char* first, const char* last, float sal, int yrs)
{
  strcpy(firstName_, first);
  strcpy(lastName_, last);
  salary_ = sal;
  years_ = yrs;
}

void Employee::setName(const char* first, const char* last)
{
  strcpy(firstName_, first);
  strcpy(lastName_, last);
}

void Employee::setSalary(float newSalary)
{
  salary_ = newSalary;
}

void Employee::setYears(int numYears)
{
  years_ = numYears;
}

void Employee::Display(void) const
{
  cout << "  Name: " << lastName_;
  cout << ", " << firstName_ << endl;
  cout << setprecision(2);
  cout.setf(ios::fixed);
  cout << "Salary: $" << salary_ << endl;
  cout << " Years: " << years_ << endl;
}

The specification (manager.h) for the Manager class:

#ifndef MANAGER_H
#define MANAGER_H
#include "employee.h"

class Manager : public Employee
{
  private:
    int deptNumber_;    // department managed
    int numEmployees_;  // employees in department

  public:
    Manager(const char* first, const char* last, float salary, int years, int dept, int emps);

    void setDeptNumber(int dept);
    void setNumEmployees(int emps);
    void Display(void) const;
};
#endif

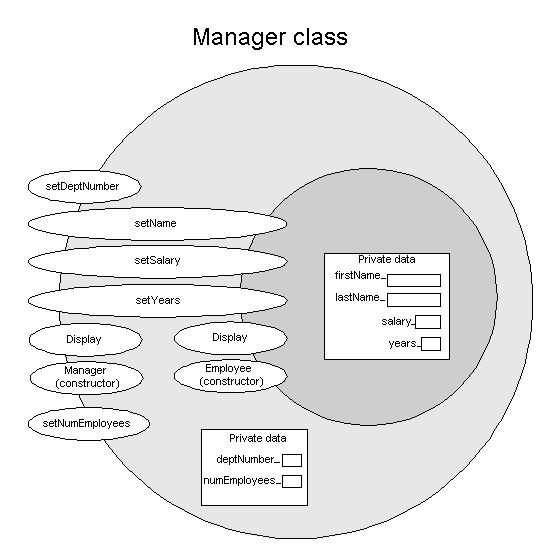

A diagram of the Manager class:

What is sizeof(Manager)?

An implementation (Manager.cpp) for the Manager class:

#include "manager.h"
#include <iostream>
using namespace std;

Manager::Manager(const char* first, const char* last, float salary,
                 int years, int dept, int emps) : Employee(first, last, salary, years)
{
  deptNumber_ = dept;
  numEmployees_ = emps;
}

void Manager::Display(void) const
{
  Employee::Display();
  cout << "  Dept: " << deptNumber_ << endl;
  cout << "  Emps: " << numEmployees_ << endl;
}

void Manager::setDeptNumber(int dept)
{
  deptNumber_ = dept;
}

void Manager::setNumEmployees(int emps)
{
  numEmployees_ = emps;
}

Trace the execution of the following program through the class hierarchy. What is the output?

#include "employee.h" #include "manager.h" #include <iostream> using namespace std; int main(void) { // Create an Employee and a Manager Employee emp1("John", "Doe", 30000, 2); Manager mgr1("Mary", "Smith", 50000, 10, 5, 8); // Display them emp1.Display(); cout << endl; mgr1.Display(); cout << endl; // Change the manager's last name mgr1.setName("Mary", "Jones"); mgr1.Display(); cout << endl; // add two employees and give a raise mgr1.setNumEmployees(10); mgr1.setSalary(80000); mgr1.Display(); cout << endl; return 0; }

Output: Name: Doe, John Salary: $30000.00 Years: 2 Name: Smith, Mary Salary: $50000.00 Years: 10 Dept: 5 Emps: 8 Name: Jones, Mary Salary: $50000.00 Years: 10 Dept: 5 Emps: 8 Name: Jones, Mary Salary: $80000.00 Years: 10 Dept: 5 Emps: 10

Protected vs. Private Data

In a nutshell:

All classes we've seen so far have private and public members.
There is a third type of access control: protected, which is kind of like a hybrid of private and public
Any base class member marked as protected can be accessed directly by derived classes (no need to go through a public member function)
To the "rest of the world", the protected members appear to be private, but to derived classes they appear to be public.

Let's extend the Employee class slightly by including accessor methods for the private data. (These methods would most likely be necessary in any real-world class but were intentionally left out to keep the example and diagrams very simple.) These methods simply retrieve the private data for clients.

Interface:

const char *getFirstName(void) const;
const char *getLastName(void) const;
float getSalary(void) const;
int getYears(void) const;

Implementation:

const char *Employee::getFirstName(void) const { return firstName_; } const char *Employee::getLastName(void) const { return lastName_; }

float Employee::getSalary(void) const { return salary_; } int Employee::getYears(void) const { return years_; }

We'll also add a new method to the Manager class that simply reports its internal state. (This type of operation was not required when the Employee class was designed and implemented.)

void Manager::LogActivity(void) const
{
  char buffer[105];
  const char *fn = getFirstName();  // use public accessor method
  const char *ln = getLastName();   // use public accessor method

  sprintf(buffer, "%s, %s", ln, fn); // Format lastname, firstname

  cout << "============================" << endl;
  cout << "Manager data:" << endl;
  cout << "  Dept: " << deptNumber_ << endl;
  cout << "  Emps: " << numEmployees_ << endl;
  cout << "Employee data:" << endl;
  cout << "  Name: " << buffer << endl;
  cout << "  Salary: " << getSalary() << endl;
  cout << "  Years: " << getYears() << endl;
  cout << "============================" << endl;
}

Some sample client code:

#include "Manager.h" int main(void) { Manager m1("Ian", "Faith", 5, 80000, 7, 25); m1.LogActivity(); return 0; }

Output: ============================ Manager data: Dept: 7 Emps: 25 Employee data: Name: Faith, Ian Salary: 5 Years: 80000 ============================

Modification #1

Modifying the Employee class so that the private data is now protected:

class Employee
{
  protected:
    char firstName_[MAX_LENGTH];
    char lastName_[MAX_LENGTH];
    float salary_;
    int years_;

  public:

    // Public methods...

};

How will this affect existing code, both derived classes and "global" code?

This will allow us to change the implementation of Manager to access the fields directly:

void Manager::LogActivity(void) const
{
  char buffer[105];
  const char *fn = firstName_;  // direct access
  const char *ln = lastName_;   // direct access

  sprintf(buffer, "%s, %s", ln, fn);

  cout << "============================" << endl;
  cout << "Manager data:" << endl;
  cout << "  Dept: " << deptNumber_ << endl;
  cout << "  Emps: " << numEmployees_ << endl;
  cout << "Employee data:" << endl;
  cout << "  Name: " << buffer << endl;
  cout << "  Salary: " << salary_ << endl;
  cout << "  Years: " << years_ << endl;
  cout << "============================" << endl;
}

Note that "regular" clients still must go through the public member functions:

#include <iostream> #include "Manager.h" int main(void) { Manager m1("Ian", "Faith", 5, 80000, 7, 25); m1.LogActivity(); // now using protected data directly; main is unaware // Error: lastName_ is a protected member (still inaccessible here) const char *last1 = m1.lastName_; // OK: getLastName() is a public member const char *last2 = m1.getLastName(); return 0; }

Notes:

The protected data of the Employee class is still hidden to the "general public" and is, therefore, safe.
The protected data is now directly available to the Manager class (and any other class that we might derive from Employee).
Note that no changes to the Manager class were required. We made them because the Employee class relaxed its access to the data.
Should we just make the data protected so that in case we extend a class via inheritance the derived class can access "its" data without going through cumbersome public methods?
As always, the answer is it depends, but in general the safe answer is "No".

Modification #2

Modifying the implementation of the Employee class.

#include "String.h"

class Employee
{
  protected:
    String firstName_;  // String is a user-defined class
    String lastName_;   // String is a user-defined class
    float salary_;
    int years_;

  public:

    // Same public methods...
};

How will this affect existing code, both derived classes and "global" code?
Now what is sizeof(Employee)?

Interface for the String class:

class String
{
  private:
    char *data_;       // the "real" C string

  public:
    String();                  // default constructor
    String(const String &str); // copy constructor
    String(const char *str);   // conversion constructor
    ~String();                 // destructor

    String & operator=(const String &str); // assigning another String
    String & operator=(const char *str);   // assigning a char *
    const char *c_str(void) const;         // get raw C string (data_)

      // Other public methods...
};

We will have to modify the internal implementation of these two public methods. (We may have to modify other methods as well, but these are sufficient to support our public interface.)

const char *Employee::getFirstName(void) const
{
  return firstName_.c_str(); // return as a C string
}

const char *Employee::getLastName(void) const
{
  return lastName_.c_str(); // return as a C string
}

This code in the derived class is now broken:

void Manager::LogActivity(void) const
{
  char buffer[105];

  const char *fn = firstName_; // direct access
  const char *ln = lastName_;  // direct access

    // Other code...
}

because firstName_ and lastName_ are no longer C strings.

Interestingly, global code is unaffected:

int main(void)
{
  Manager m1("Ian", "Faith", 5, 80000, 7, 25);

    // This is still OK because getLastName() was modified as well
  const char *last2 = m1.getLastName();

  return 0;
}

Notes:

Making data protected essentially makes it public in derived classes.
This is definitely a double-edged sword:
1. Derived classes can access the data directly without going through public methods.
2. Changes to the base class data may affect all derived classes that rely on a particular implementation.
Any kind of direct access promotes tight-coupling, which is generally an undesirable coding practice. (Code to an interface, not an implementation.)
Are you making data protected to keep the syntax simpler? (This is generally not a good reason to use protected.)
With inline member functions, there is no penalty for making a function call.
If you don't want all code to access the private data with public methods, consider making some of the methods protected for derived classes.

OOP	C++
Object	Class object or instance
Instance variable	Private data member
Method	Public member function
Message passing	Calling a public member function
