Session 3
Basic component overview: Page component (tabs), checkboxes, radio buttons, group boxes, radio groups, spin edit (up/down), sliders
During this session we looked at some of the basic UI components and how/when to use them. The amount of code was trivial,
mainly because we aren't doing anything with the user's choices yet.
Download the .exe.

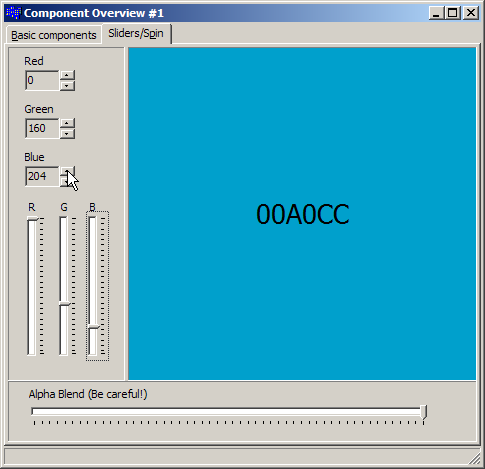

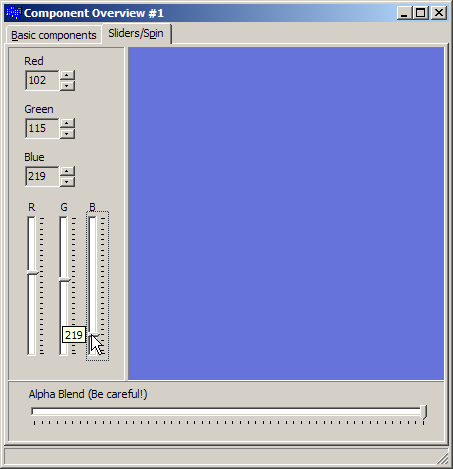

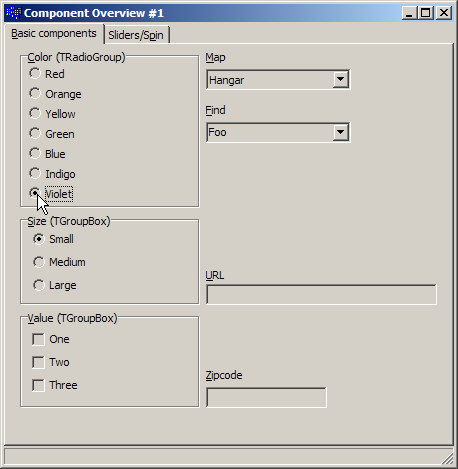

| Basic components (TCheckBox, TRadioButton, TGroupBox) | | Sliders (TTrackBar) and spin edits (TUpDown) |
|---|
|
|
|
- MainForm.h - The definition of the main form. (Notice that it is all IDE-managed code since we haven't done much yet.)
- MainForm.cpp - The implementation. (Also very sparse.)
- Project files - The files needed to build/run the program.
- Add shortcuts (hotkeys) to the "Sliders/spin edits" page. Note that hot keys don't work across pages (tabs) so you can re-use shortcut keys.
- Make it so if you check any of the checkboxes, it will add the text to the "Map" combo box. (Bonus: Unchecking the box will remove it from the combo box.)
- Display the current color in RGB format (e.g. FFA055) in the colored panel. (Hint: use the Format function. It's like printf).
