Session 4

Creating a tile-based editor for a platform game
(Grids, check buttons, WinExec, handling draw events)

Session #4

The session dealt with implementing a tile-based editor for a platform game. The platform game was actually from a CS230 course at Digipen. This is a screen shot of that game:

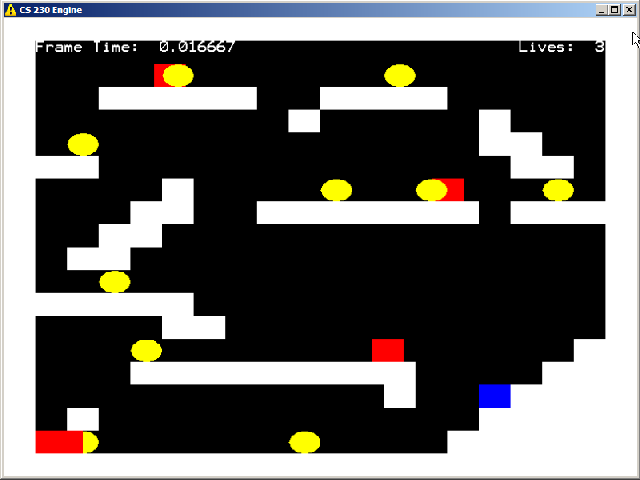

The game in action		The data file used
		Width 20 Height 20 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 4 3 0 0 0 0 0 4 0 3 0 0 1 1 1 1 1 1 1 0 1 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 1 1 1 1 1 0 0 0 1 1 1 1 1 1 1 1 1 0 0 2 0 1 1 1 1 0 0 0 4 0 0 0 3 0 0 0 0 0 0 0 0 0 1 1 1 0 0 0 0 1 1 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 0 0 4 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 0 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 0 0 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 0 0 0 1 1 0 0 1 1 1 1 1 1 1 0 1 1 1 1 1 0 0 0 0 1 0 0 0 3 4 0 0 4 0 0 0 4 0 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 0 1 1 0 4 0 0 0 0 0 0 0 0 0 0 0 0 1 1 0 0 1 1 0 0 0 0 0 0 0 0 1 0 0 0 0 0 1 0 0 0 1 1 0 0 1 1 1 1 1 0 0 1 1 1 1 0 0 0 0 0 1 1 0 0 0 3 4 0 0 0 0 0 0 4 0 0 0 0 0 0 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

The game in action

The data file used

Width 20
Height 20
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
1 0 4 3 0 0 0 0 0 4 0 3 0 0 1 1 1 1 1 1
1 0 1 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1
1 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 1 1 1 1
1 0 0 0 1 1 1 1 1 1 1 1 1 0 0 2 0 1 1 1
1 0 0 0 4 0 0 0 3 0 0 0 0 0 0 0 0 0 1 1
1 0 0 0 0 1 1 0 0 0 0 0 0 0 0 0 0 0 0 1
1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 1
1 0 0 4 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
1 0 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
1 0 0 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
1 0 0 0 1 1 0 0 1 1 1 1 1 1 1 0 1 1 1 1
1 0 0 0 0 1 0 0 0 3 4 0 0 4 0 0 0 4 0 1
1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 0 1
1 0 4 0 0 0 0 0 0 0 0 0 0 0 0 1 1 0 0 1
1 0 0 0 0 0 0 0 0 1 0 0 0 0 0 1 0 0 0 1
1 0 0 1 1 1 1 1 0 0 1 1 1 1 0 0 0 0 0 1
1 0 0 0 3 4 0 0 0 0 0 0 4 0 0 0 0 0 0 1
1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

During the first few minutes, we talked about some of the features that one would want to have in a basic tile editor. This tool is by no means complete, but it is a good starting point. The primary focus of this lecture was to introduce the drawing grid components (TDrawGrid and TStringGrid). These components are very powerful and can bring a lot of power with minimal cost.

This is a very small program that just demonstrates some of the properties of the TDrawGrid and TStringGrid components. You should look at the properties in the Object Inspector in the IDE. Modify some of them and see how it changes the behavior. Specifically, modify these properties:

ColCount, RowCount - The number of columns and rows
DefaultColWidth, DefaultRowWidth - The default settings for these properties
FixedCols, FixedRows - The "non-cell" portion of the grid
GridLineWidth - The, well, width of the grid lines
Under the Options properties:
- Toggle the boolean values to see how these affect the grid.
- You can resize and move the rows/columns, perform inline editing (string grid), range select, etc.

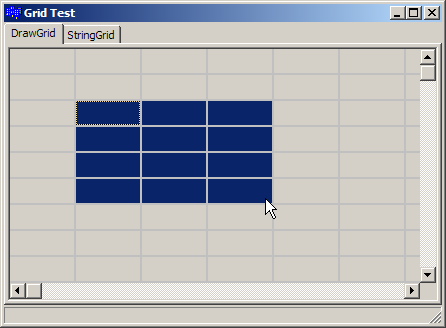

The draw grid The string grid

Project files - There are only about 8 lines of code that I had to write. (And I didn't even need half of them.)
Random walk project. This is another GUI that uses the TDrawGrid component. It's the GUI for the "Drunk man on a pier" program from CS120 "Friday Lectures". Warning: It's not very well commented as it was just thrown together for the Friday session. Still, you should be able to easily follow it by now.
WarBoats project You will need to provide your own Ocean.h and Ocean.cpp from the CS170 assignment.

This is the "platform editor" that was presented for the rest of the session:

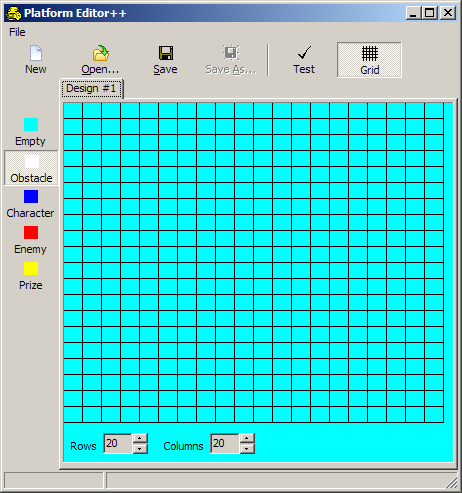

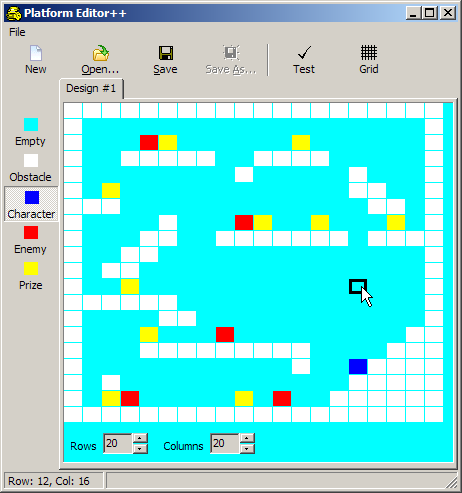

The empty editor The completed "level"

Be sure to read the comments in the .cpp file. They should explain most of what is going on.

MainForm.h - The definition of the main form.
MainForm.cpp - The implementation.
Project files - Includes the images to build the application. The archive includes a folder named Debug_Build that contains some sample data files (Exported?.txt) and the CS230 platform game executable.
